Flyline Sets and Line Extensions

PKS Elite 99 Kite Race/ Hydrofil Lines Line

Developed in conjunction with Robline, a worldwide leader in technological watersports line manufacturing, and manufactured from Dyneema SK 99 fiber, comes the new PKS Elite 99 Lines. The PKS Elite 99 lines are a high strength, low stretch kite line. The Line sets are manufactured with spliced and sewn loops. Since we manufacture the line sets in house, you get to choose the line length that meets your specific needs.

Pre-Loaded lines for a more consistant and responsive feel from kite to bar. This lets you have a greater sense of where the kite is and what it is doing even on a kite with lighter bar pressure.

Utilizing an enhanced impregnation and coating process and using a stabalized UV and abrasion resistant protective coating, the lines maintain their consistant and responsive feel for many years of use throughout their life.



Features:

• Using only lightweight lines, the parasitic drag is reduced to minimum ensureing your lines never slow you down in a race or in ligh wind on a hydrofoil.
• A 12-braid technology line with high breaking load and low elongation due to the Dyneema SK99 fiber.
• Spliced and sewn line ends for the strongest connection.
• Precision high strength micro stitching with high strength UV treated thread.

Specifications:


All Lines
Diameter [mm] - 1.3mm
MBL - 380 daN
Rated - 850 Pounds
Color Coded - Red, Grey, Grey, Blue
Spliced and Sewn Line Ends

PKS Elite 99 Kite Line

Developed in conjunction with Robline, a worldwide leader in technological watersports line manufacturing, and manufactured from Dyneema SK 99 fiber, comes the new PKS Elite 99 Lines. The PKS Elite 99 lines are a high strength, low stretch kite line. The Line sets are manufactured with spliced and sewn loops. Since we manufacture the line sets in house, you get to choose the line length that meets your specific needs.

Pre-Loaded lines for a more consistent and responsive feel from kite to bar. This lets you have a greater sense of where the kite is and what it is doing even on a kite with lighter bar pressure.

Utilizing an enhanced impregnation and coating process and using a stabilized UV and abrasion resistant protective coating, the lines maintain their consistent and responsive feel for many years of use throughout their life.



Features:

• A combination of heavy duty lines for the center and lighter lines for the outside steering lines giving you the best configuration for optimal performance.
• A 12-braid technology line with high breaking load and low elongation due to the Dyneema SK99 fiber.
• Spliced and sewn line ends for the strongest connection.
• Precision high strength micro stitching with high strength UV treated thread​

Center / Front Lines
Diameter [mm] - 1.7mm
MBL - 500 daN
Rated - 1124 Pounds

Outside / Steering Lines:
Diameter [mm] - 1.3mm
MBL - 380 daN
Rated - 850 Pounds

Line Set:
Color Coded - Red, Grey, Grey, Blue
Spliced and Sewn Line Ends

PKS Elite 99 Heavy Duty Kite Line Set

Developed in conjunction with Robline, a worldwide leader in technological watersports line manufacturing, and manufactured from Dyneema SK 99 fiber, comes the new PKS Elite 99 Lines. The PKS Elite 99 lines are a high strength, low stretch kite line. The Line sets are manufactured with spliced and sewn loops. Since we manufacture the line sets in house, you get to choose the line length that meets your specific needs.

Pre-Loaded lines for a more consistant and responsive feel from kite to bar. This lets you have a greater sense of where the kite is and what it is doing even on a kite with lighter bar pressure.

Utilizing an enhanced empregnation and coating process and using a stabalized UV and abrasion resistant protective coating, the lines maintain their consistant and responsive feel for many years of use throughout their life.



Features:

• A 12-braid technology line with high breaking load and low elongation due to the Dyneema SK99 fiber.
• Spliced and sewn line ends for the strongest connection.
• Precision high strength micro stitching with high strength UV treated thread.

Specifications:


All Lines
Diameter [mm] - 1.7mm
MBL - 500 daN
Rated - 1124 Pounds

Line Set:
Color Coded - Grey, Grey, Grey, Grey
Spliced and Sewn Line Ends

Nasih 20m Back/Outside lines, standard lines Naish line colors, Red, Blue, Back/OutsideLines

Line Extensions allow you to tune your kite lines to the exact length that you want. Extensions are made in a set of four (4) from 700 lbs. line with sleeved and sewn loops on both ends.

CUSTOM lengths are possible, including mixing lengths for outer and inner lines.

Q-PowerLine Pro is the only line specifically engineered for Kiteboarding/Power Kite applications, and it's no wonder there's nothing better when you see what it is: high-strength, low-weight, low-drag, coated line reduces tangling. Linesets come with loops on all ends, but can add custom pigtails.

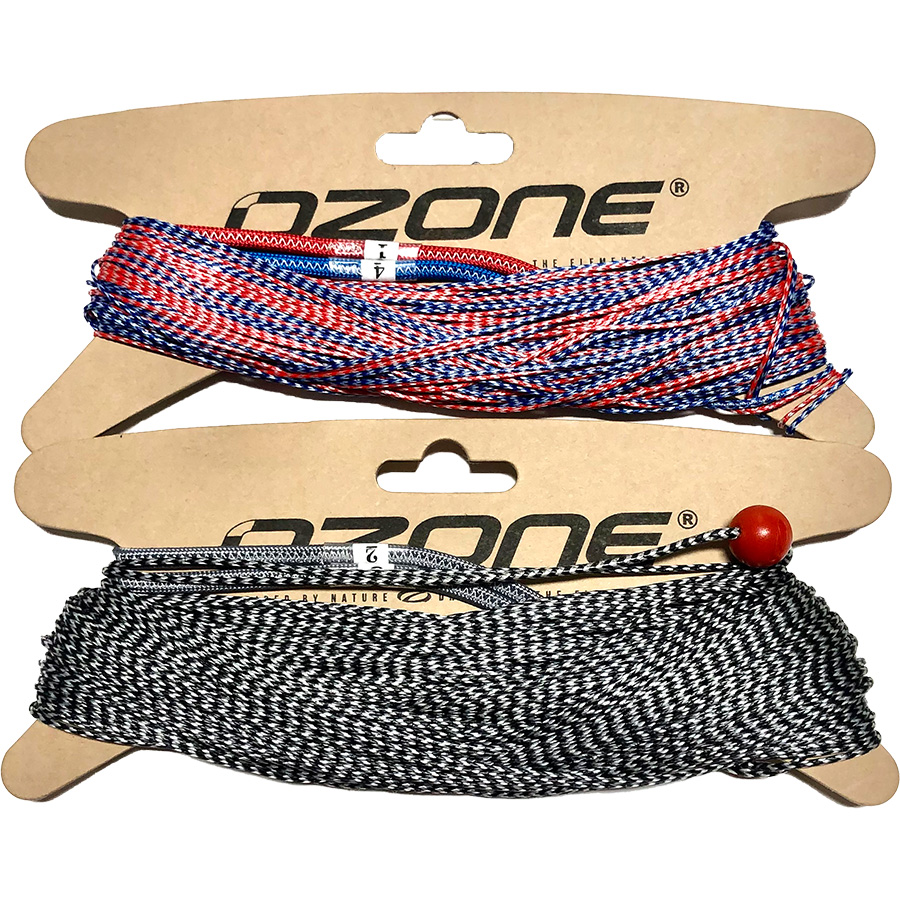

Ozone line extensions are made to be used with all Ozone water kites and the Ozone Contact Water, C4, or Race Control Bars. Adding extensions to your lines can give your kite that extra height to find some cleaner wind and also give you a bit more power for those lighter days.

Taking it to the next level, Ozone has upgraded the 500kg/300kg kitesurf lines to the latest and greatest SK99 Dyneema fiber. This new fiber is stronger and less sensitive to shrinkage and stretch. Combined with new industry-leading braiding technology this will not only keep your lines at factory length for a longer time but also provides a more direct feeling and connection to your kite - especially steering inputs are more immediate with less delay giving you a faster, more reactive kite.

The SK99 fiber reduces line diameter while maintaining high strength. The 300kg back lines have reduced in diameter from 1.1mm to 0.9mm keeping the same strength. From years of feedback we know Ozone customers like strong 500kg front lines and the thicker diameter makes them less prone to breaking. The diameter has been kept at 2.2mm on the front lines while increasing the breaking strength by 15%. We will still call this product 500kg even though the breaking strength is higher.

Get more performance for kite racing or light wind riding with reduced drag from Ozone Pro Race Lines. These even length lines are compatible with any Contact Water Freeride or Race bar.

Q-PowerLine Pro is the only line specifically engineered for Kiteboarding/Power Kite applications, and it's no wonder there's nothing better when you see what it is: high-strength, low-weight, low-drag, coated line reduces tangling. Linesets come with loops on all ends, but can add custom pigtails.

Get more performance for kite racing or light wind riding with reduced drag from Ozone Pro Race Lines. These even length lines are compatible with any Contact Water Freeride or Race bar.

PKS Trainer Kite Lines fly above the rest.  PKS trainer lines are 200 lbs. white lines for high-visibility, and made from Pre-stretched Spectra to several lengths to fit your Custom needs.  Stitched loops on both ends ensure easy larkshead connection to any trainer kite brand out there.

North Replacement Standard Spare Line set - 22m Overall Length

12m + 10m Dyneema SK99 line extensions enable you to customise your line length for wave riding or tighter kiteloops. The Navigator Control System is supplied with 22m Lines, with a split at 12m, which is far enough for the bar to travel to completely depower our largest kite when you flag out. Remove the standard 10m top section of line and 12m lines are ideal for schools to teach with and for foil racing. Shorter 8m + 2m line extensions are also available as an accessory for those wanting 18m or 20m lines for wave riding or tighter kiteloops.

North Line Extension set

Dyneema SK99 line extensions enable you to customise your line length for wave riding or tighter kiteloops. The Navigator Control System is supplied with 22m Lines, with a split at 12m. If you want to lengthen your lines, just choose what length works best for you!

Includes:
4 Lines with spliced loops on both ends

Features

• SK99 Dyneema lines
• Spliced with stitched loops on all ends
• Pre-Stretched

North 6m Line Extension  - 6m

6m Dyneema line extensions for those wanting custom lines for wave riding or tighter kiteloops. The Navigator Control System is supplied with 22m Lines, with a split at 12m, which is far enough for the bar to travel to completely depower our largest kite when you flag out. Remove the standard 10m top section of line and 12m lines are ideal for schools to teach with and for foil racing.

Includes:

• 2x 6m Lines (Green), 2x 6m Lines (Grey)

Features

• SK99 Dyneema lines
• Spliced with stitched loops on all ends
• Pre-Stretched

North Short Spare Line Set - 10m

8m + 2m Dyneema line extensions for those wanting custom 18m or 20m lines for wave riding or tighter kiteloops. The Navigator Control System is supplied with 22m Lines, with a split at 12m, which is far enough for the bar to travel to completely depower our largest kite when you flag out. Remove the standard 10m top section of line and 12m lines are ideal for schools to teach with and for foil racing.

Includes:

• 2x 8m Lines (Green), 2x 8m Lines (Grey), 2x 2m Lines (Green), 2x 2m Lines (Grey), Line Winder

The Ozone line winder will help you keep your lines nice and neat.

The winder is approx 18cm across at the narrowest point and 25cm across at the widest point.

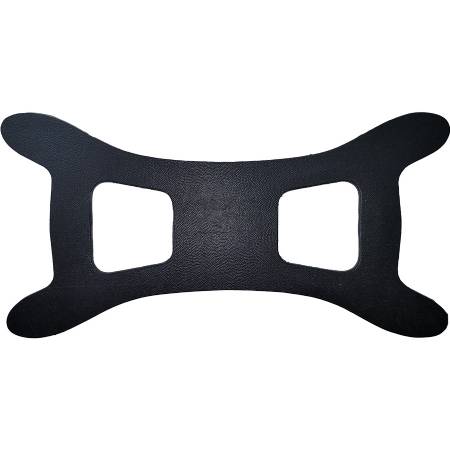

The PKS line winder will help you keep your lines nice and neat.

The winder is approx 21cm across at the narrowest point and 27cm across at the widest point.
